160° 1-chip EMC 3030 IP65 200lm DC12V 2W Mini Led Module, 53x31x7.35mmmm

Technical Parameters

Item No. YL-HSM4530-2X
Input Voltage DC12V
Wattage 2W
Led Chip 1pc EMC 3030 Led Chip
CRI 80Ra/90Ra
CCT 2700-6500K/R/G/B
Lumen 200lm
IP Rate IP65
Beam Angle 160°
Dimension 53*31*7.35mm
Material ABS
Cable Length 150mm
Warranty 5 years

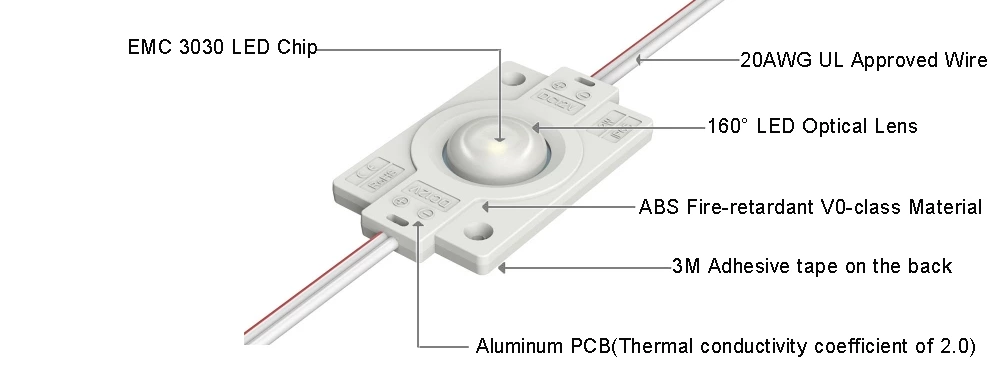

Product Specification



160° 1-chip EMC 3030 IP65 200lm DC12V 2W Mini Led Module, 53x31x7.35mmmm



160° 1-chip EMC 3030 IP65 200lm DC12V 2W Mini Led Module, 53x31x7.35mmmm



Installation Method



160° 1-chip EMC 3030 IP65 200lm DC12V 2W Mini Led Module, 53x31x7.35mmmm

Application

Boxled side module suitable for double-sided light box

Led fairy module suitable for round coner advertising light box

Edge led module suitable for outdoor advertising signs

Edge light led module suitable for light box lighting source

Side emitting led module suitable for exhibition show

Fairy led module suitable for ceilling roof lights

Box led module suitable for institution building

Led lightbox module suitable for commercial lighting

Edge lit lightbox led module suitable for hotels

Posterbox led module suitable for decoration
