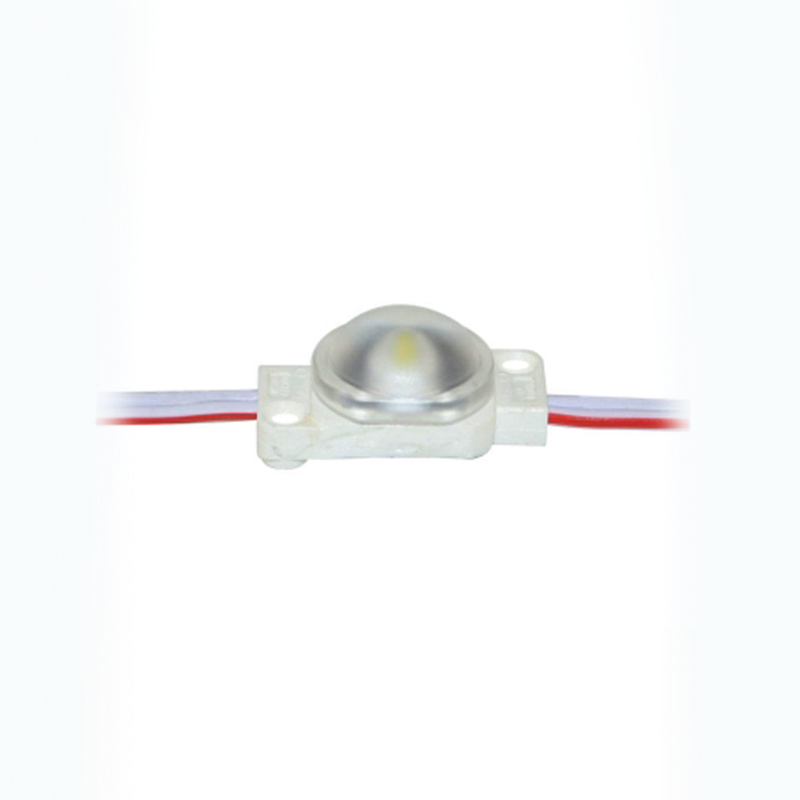

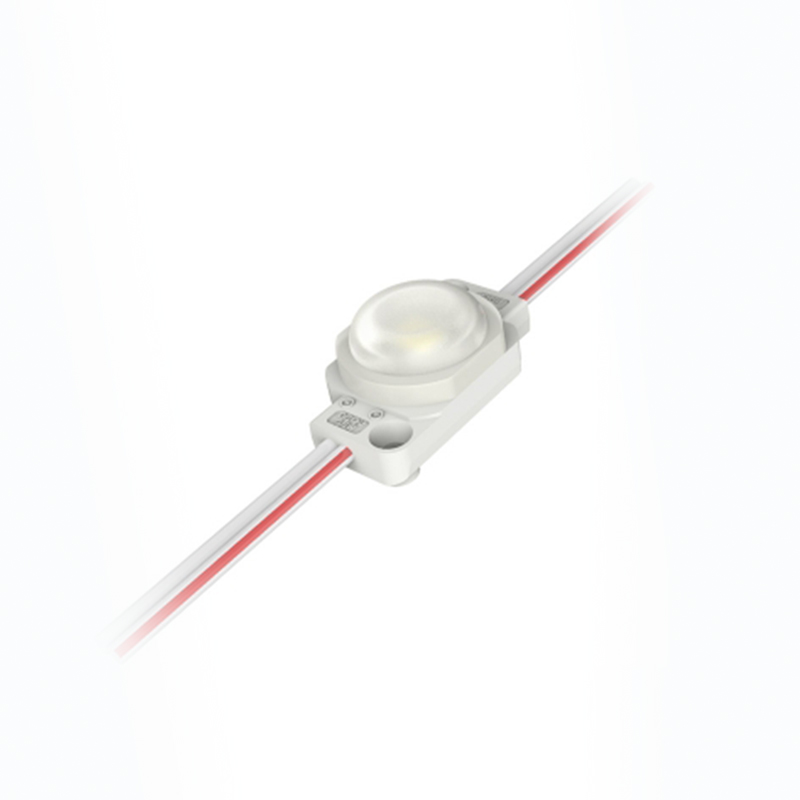

Waterproof DC12V 0.36W Mini Led Module

Technical Parameters

Item No. YL-2LSM2014-1X
Input Voltage DC12V
Wattage 0.36W
Led Chip 1pc SMD2835 Led Chip
CRI 80Ra/90Ra
CCT 2700-6500K/R/G/B
Lumen 54lm
IP Rate IP67
Beam Angle 165°
Dimension 20*14*10mm
Material ABS
Cable Length 150mm
Warranty 5 years

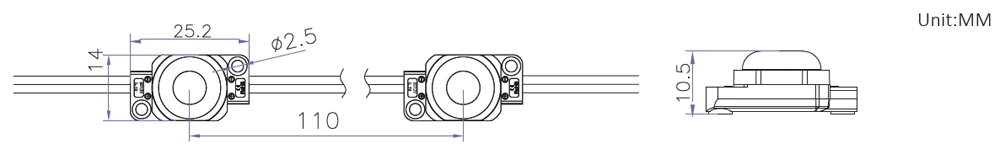

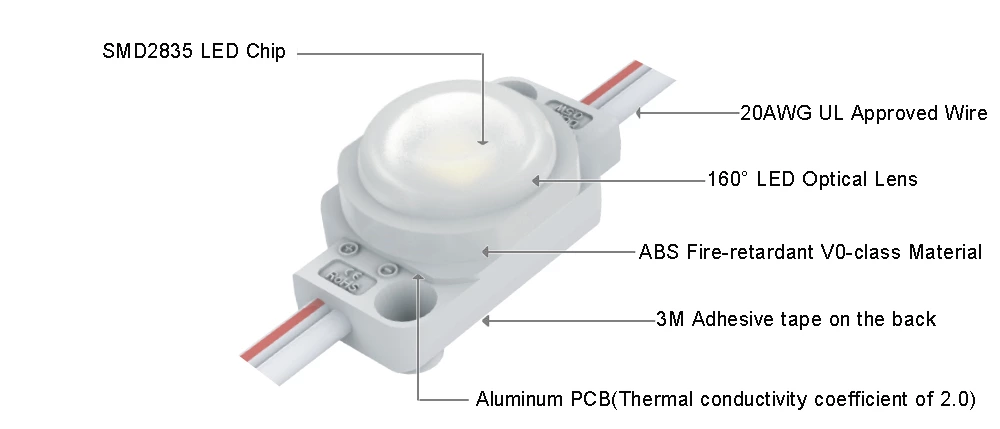

Product Specification

Waterproof DC12V 0.36W Mini Led Module



Waterproof DC12V 0.36W Mini Led Module

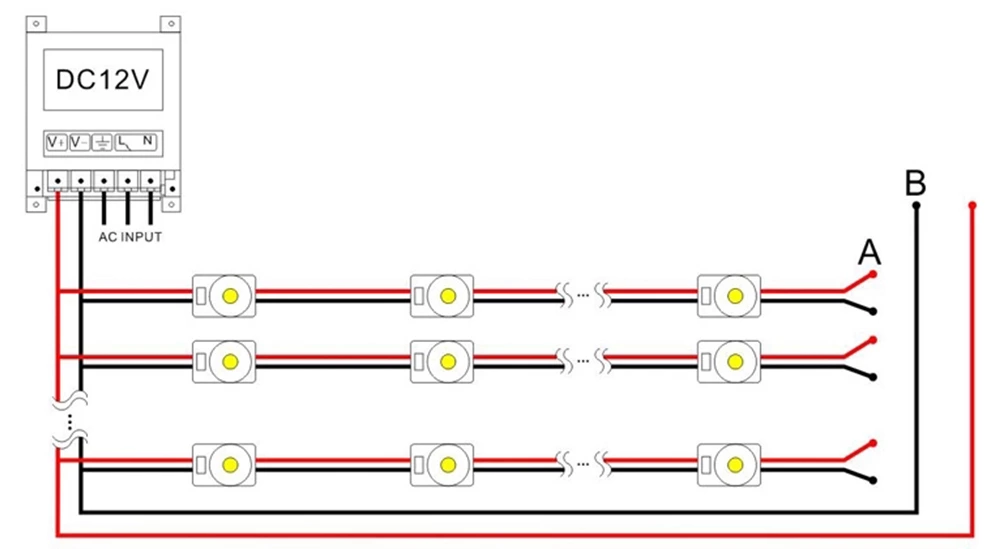

Installation Method



Waterproof DC12V 0.36W Mini Led Module

Application

Boxled side module suitable for double-sided light box

Led fairy module suitable for round coner advertising light box

Edge led module suitable for outdoor advertising signs

Edge light led module suitable for light box lighting source

Side emitting led module suitable for exhibition show

Fairy led module suitable for ceilling roof lights

Box led module suitable for institution building

Led lightbox module suitable for commercial lighting

Edge lit lightbox led module suitable for hotels

Posterbox led module suitable for decoration
