AC85-265V Rectangle PIR Motion 3W Rimless Led Stair Light
- Item No.
- YL-OSL02-X
- Input Voltage
- AC85-265V
- Wattage
- 3W
- Led Chip
- Osram SMD3030 Chip
- CRI
- 80Ra/90Ra
- CCT
- 2700-6500K
- IP Rate
- IP22/IP65
- Dimension
- 200x100x40mm
- Hole Size
- 158x45x40mm
- Material
- Aluminum
- Warranty
- 3 Years
| Item No. | YL-ISL02-X | YL-OSL02-X |
| IP Rate | IP22 | IP65 |
| Dimension | 200x100x50mm | 200x100x40mm |
| Hole Size | 172x40x55MM | 158x45x40mm |
| Voltage | AC85-265V | |
| Wattage | 3W | |
| Led Chip | SMD3030 Osram Led Chip | |
| CCT | 2700-6500K | |
| CRI | 80Ra/90Ra | |
| Material | Aluminum | |
| Function | Standard type/Human Body Induction | |
| Sensing Angle | 90° | |
| Delay Time | 35-40s | |
| Warranty | 3 Years | |
Product Feature
1. PIR Motion Sensor. The light will auto on when people comes, and off when people leave, energy saving. Automatically recognize day and night. As long as s any object with temperature enters the detection range, the light will be on.
2. 2-3m 90 degree Wide detection area. When left for 30 seconds, the lights automatically turn off.
3. Special heat sink design, low working temperature, long lifespan and saving energy.
4. Eco-friendly: no radiation, no flickering, no Mercury or lead
5. Used for kinds of Decorative -stair,wall,hallway of home, office and public place etc.

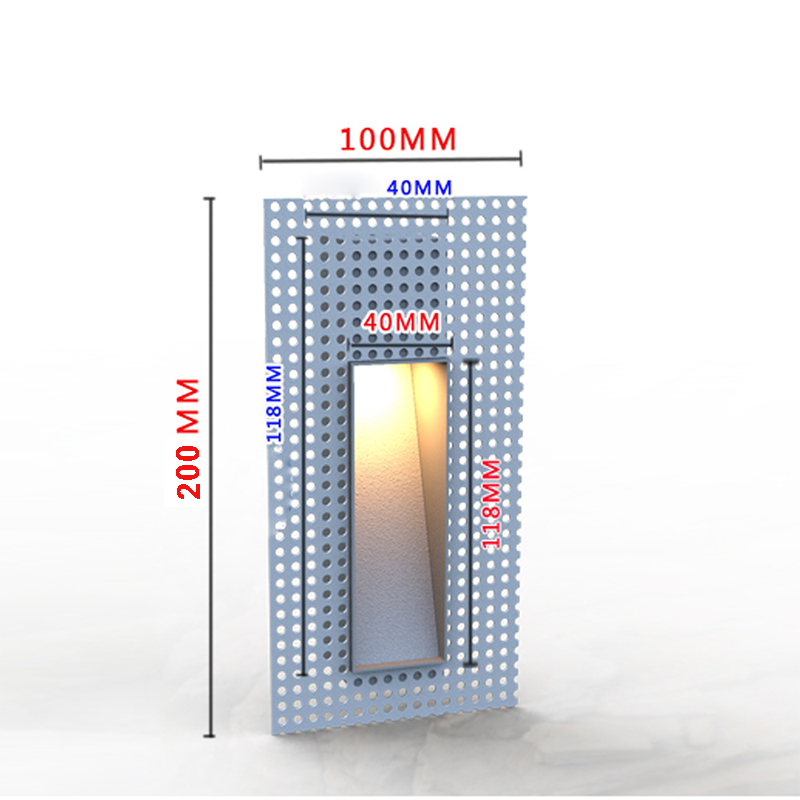

Dimension

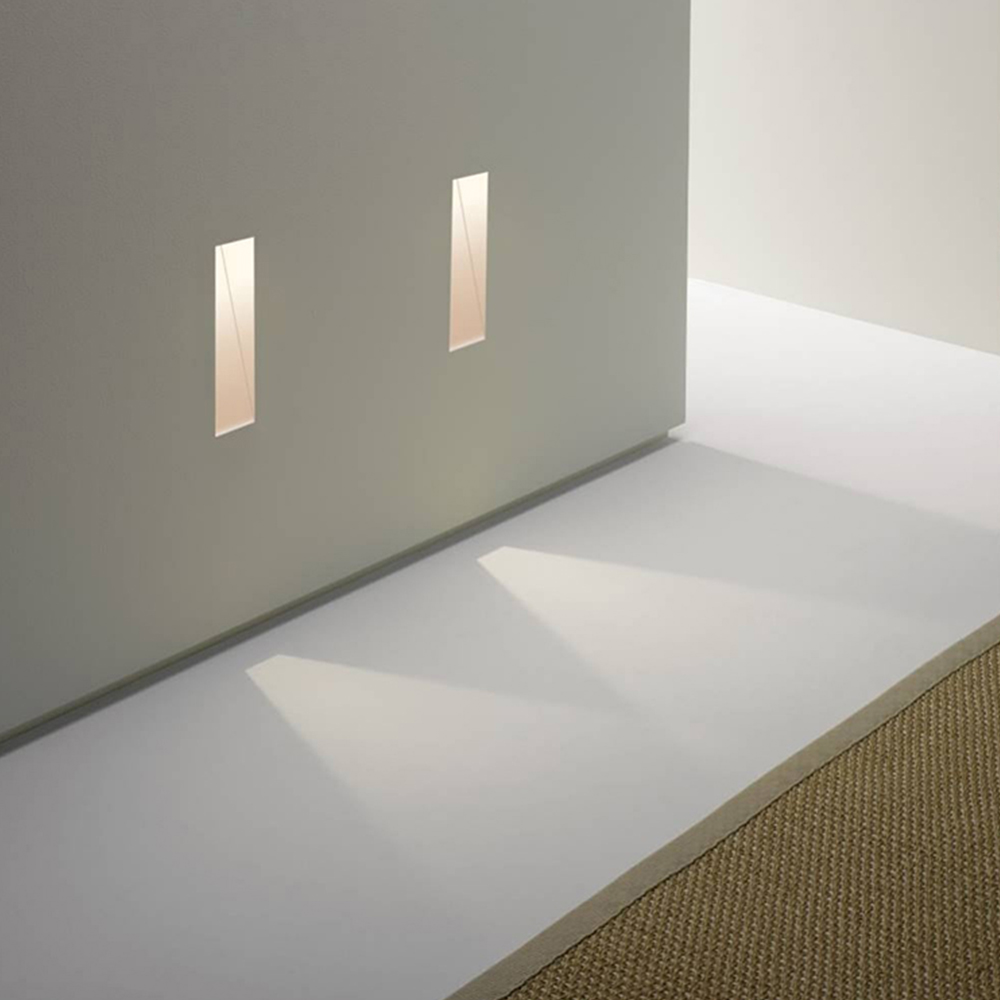

Application
