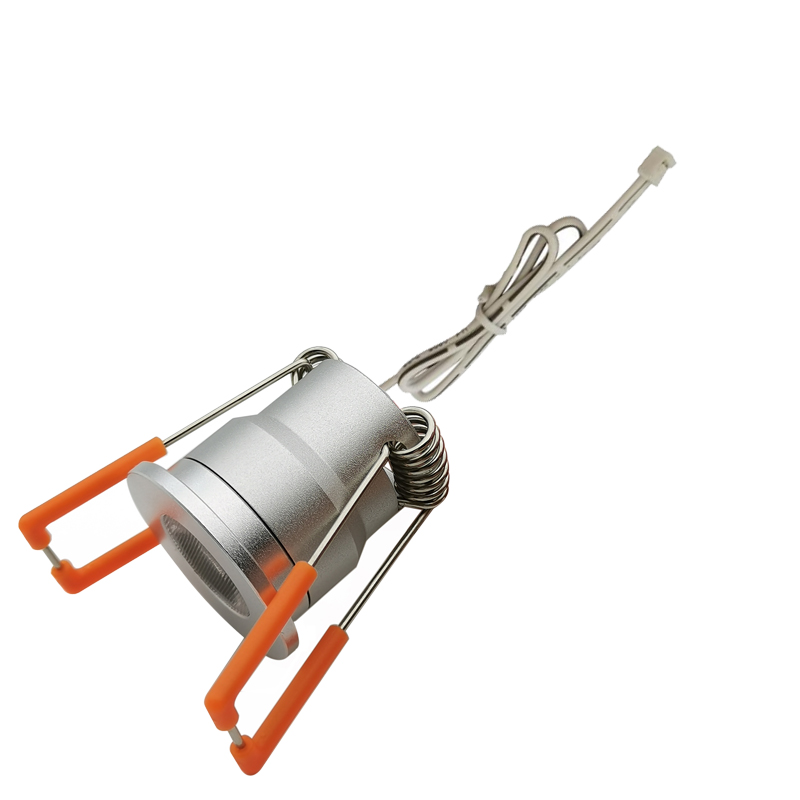

DC12V 3W Mini Led Spotlight Set

Item No.
YL-MSL04-3W-Set
Input Voltage
AC100-240V
Output Voltage
DC12/24V
Wattage
6x3W
Led Chip
6pcs CREE 5050 Chips
CRI
80/90Ra
CCT
2700-6500K
Lumen
6x330Lm
IP Rate
IP20
Contact Now
DC12V 3W Mini Led Spotlight Set
DC12V 3W Mini Led Spotlight Set DC12V 3W Mini Led Spotlight Set DC12V 3W Mini Led Spotlight Set DC12V 3W Mini Led Spotlight Set DC12V 3W Mini Led Spotlight Set

Technical Parameters

Item No. YL-MSL04-3W-Set
Input Voltage AC100-240V
Output Voltage DC12/24V
Wattage 6x3W
Led Chip 6x1pc CREE 5050 Chip
CRI 80Ra/90Ra
Color WW/NW/CW
Lumen 6x330lm
IP Rate IP20
Beam Angle 20/30/45/60/80/120°

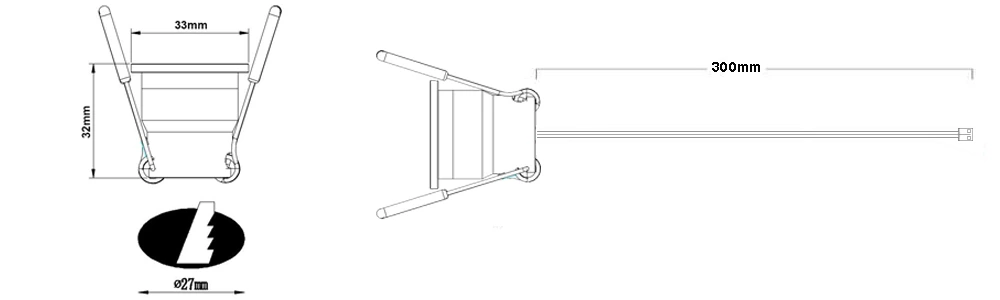

Dimension 32x32mm
Hole Size Ф27mm
Material 6063 Aluminum
Cable Length 300mm
Housing Color Sliver/White/Black
Warranty 3 years

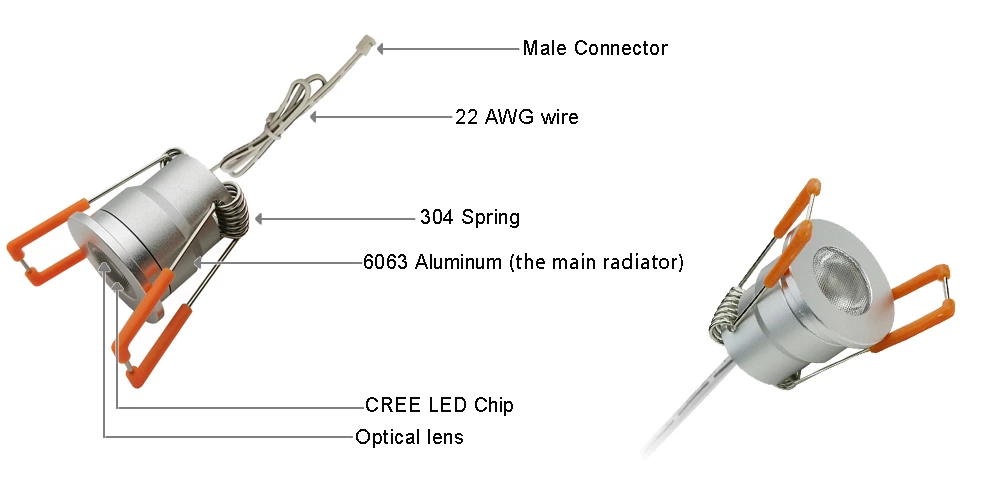

Product Specification



Dimming Way

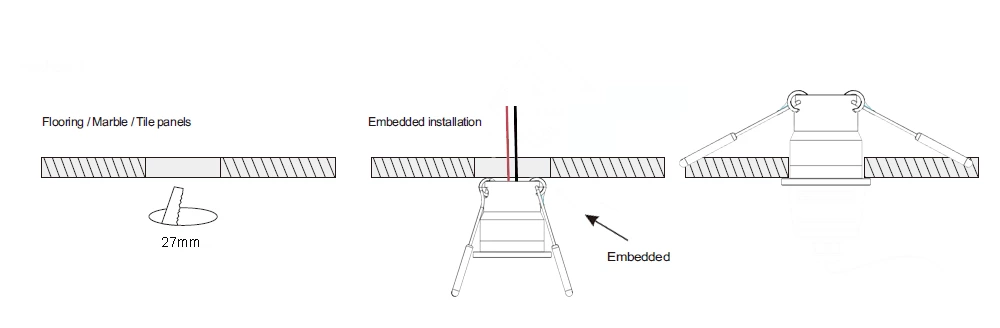

Installation Method





Color Temperature Comparison

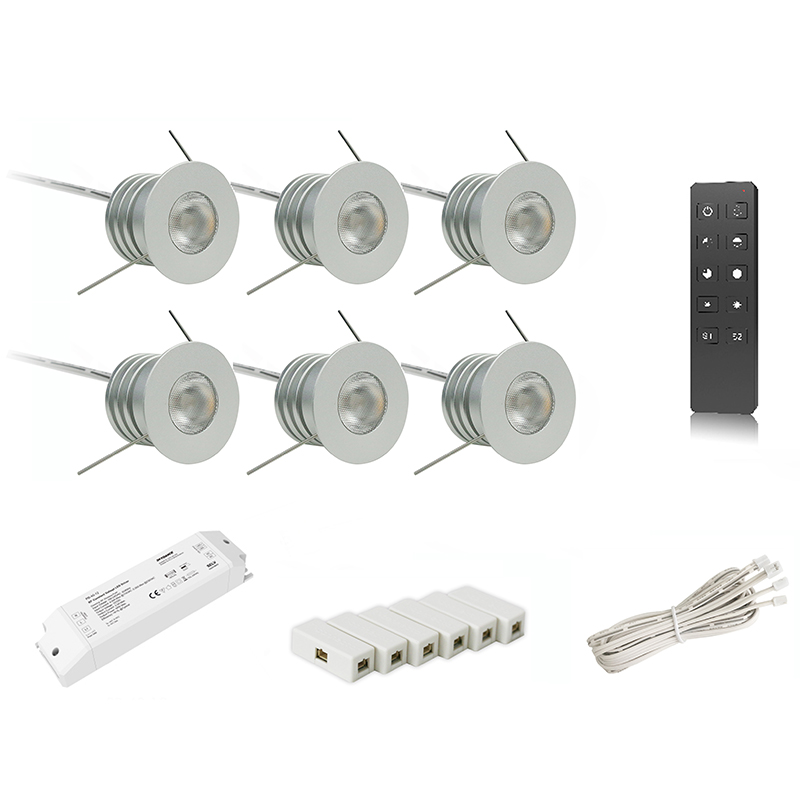

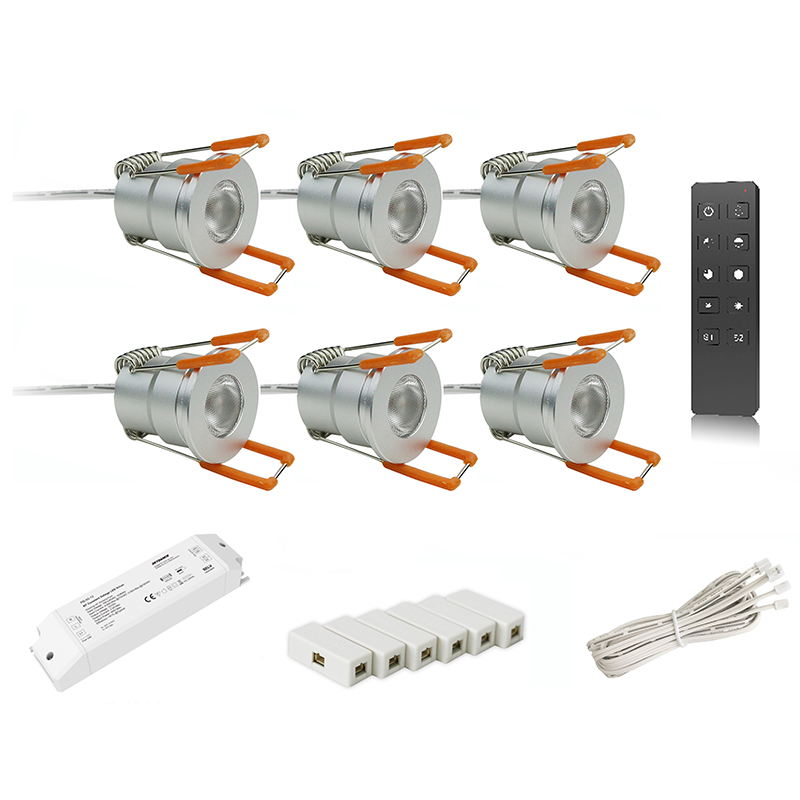

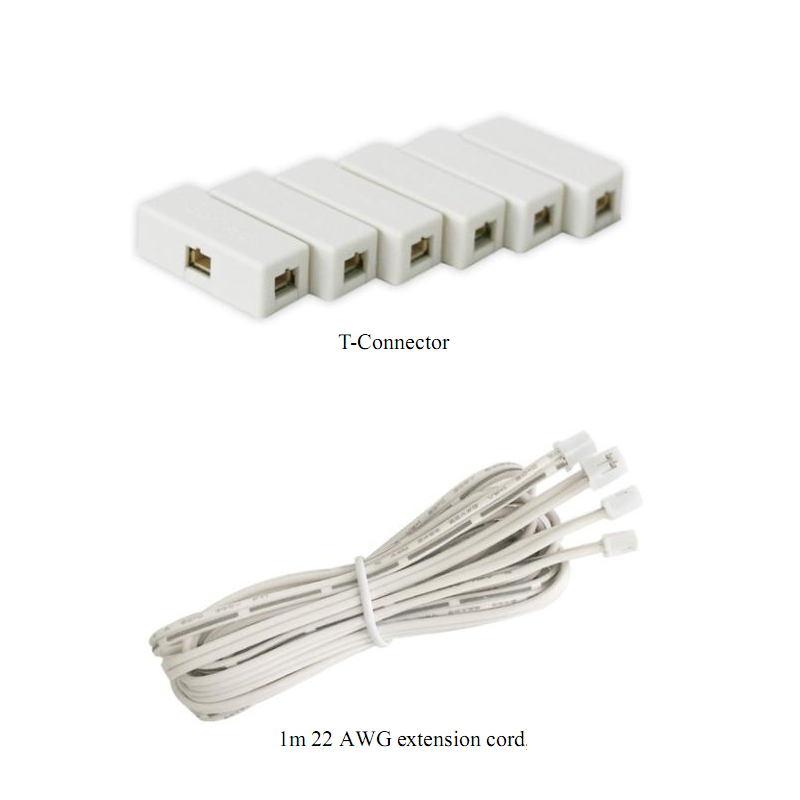

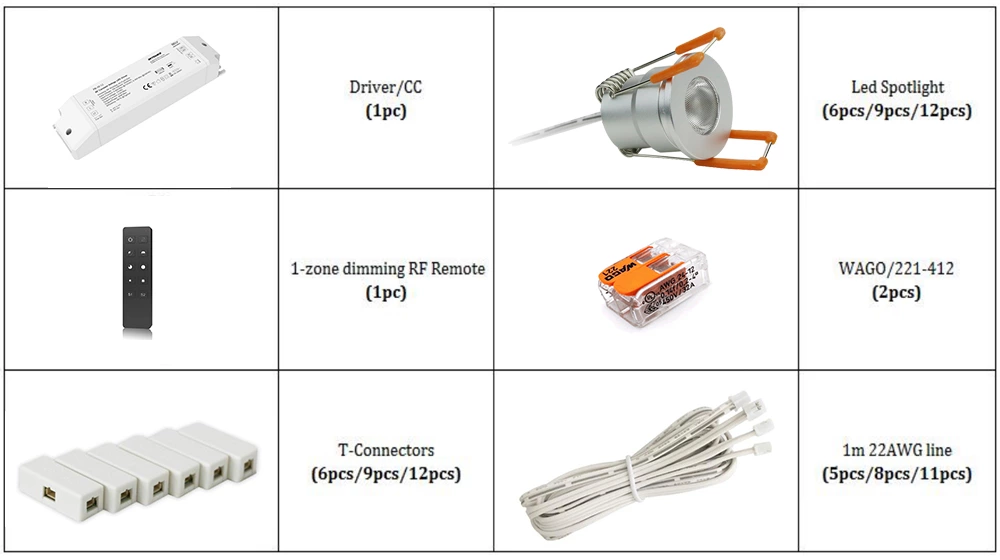

Packing List for Set



Application

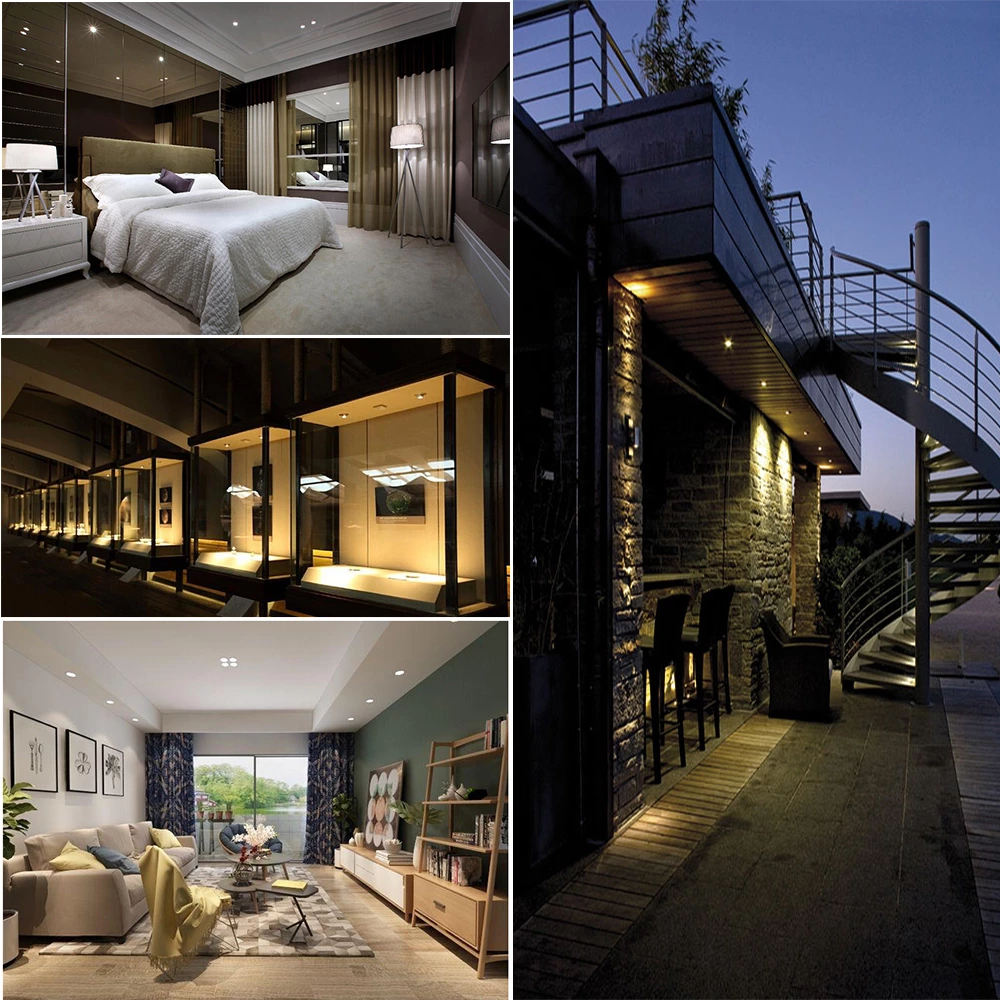

Room Decorative Light, KTV Rooms, Stairs Indicating Light, Cabinet Showcase Light, Stair, Ceiling, Cabinet, Showcase, Kitchen and other DIY decoration Design Lighting etc.
