10°x60° DC12V 1.32W Side light Led module
Technical Parameters
| Item No. | YL-H10SM3422-1X | |||
| Input Voltage | DC12V | |||
| Wattage | 1.32W | |||
| Led Chip | 1pc Osram SMD3030 Led Chip | |||
| CRI | 80Ra/90Ra | |||
| CCT | 2700-6500K | |||
| Lumen | 130lm | |||
| IP Rate | IP65 | |||
| Beam Angle | 10°x60° | |||

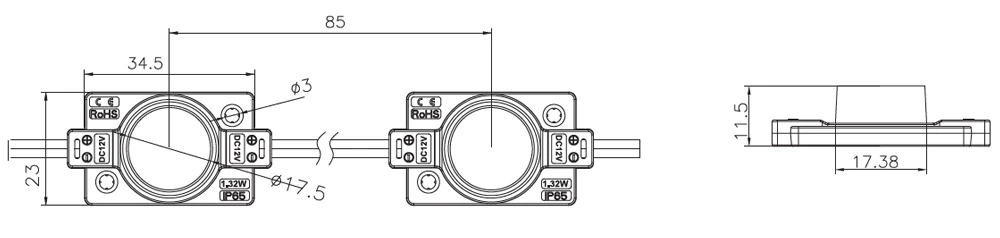

| Dimension | 34.5*23*11.5mm | |||
| Material | ABS | |||
| Cable Length | 150mm | |||
| Warranty | 5 years | |||
Product Specification
Installation Method

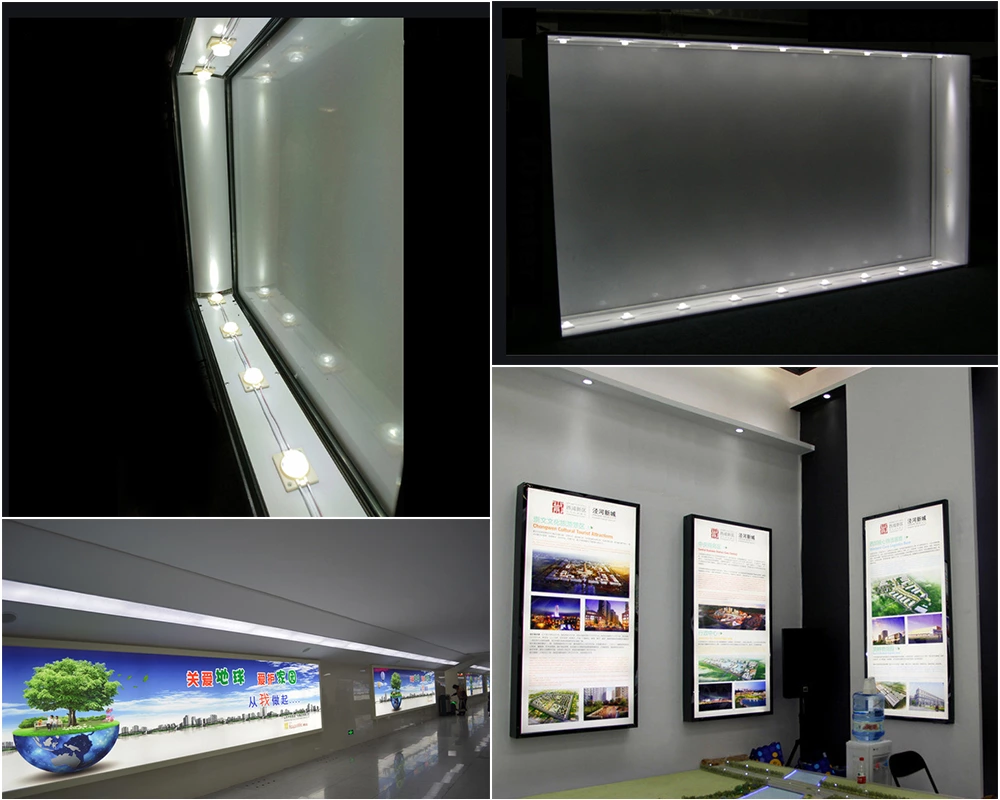

Application
Boxled side module suitable for double-sided light box
Led fairy module suitable for round coner advertising light box
Edge led module suitable for outdoor advertising signs
Edge light led module suitable for light box lighting source
Side emitting led module suitable for exhibition show
Fairy led module suitable for ceilling roof lights
Box led module suitable for institution building
Led lightbox module suitable for commercial lighting
Edge lit lightbox led module suitable for hotels
Posterbox led module suitable for decoration
