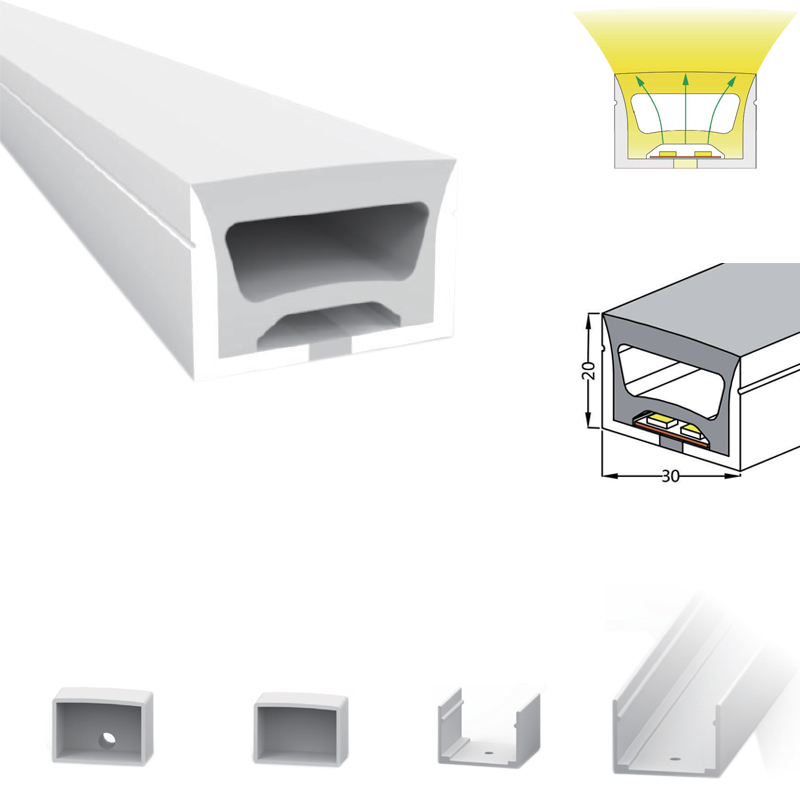

120° 20x20mm IP67 Flex Silicone Neon Tube Led Light

Item No. YL-FN2020-X
Voltage DC5/12/24V
Wattage 12-18W/m
Led Chip SMD2835
Led Qty ≥120pcs/m
PCB Width 10mm
Beam Angle 120°
CCT 2700-6500K/Red/Green/Blue/Yellow/Pink/Purple/RGB
CRI 80/90Ra
Dimension 20x20mm
IP Rate IP67
Working Temperature -20-50 ℃
Warranty 3 years

Product Feature

  • At-yellowing and heat resisting silicone glue, chemical resistance acid and alkaline,available for extremely terrible outdoor environment.

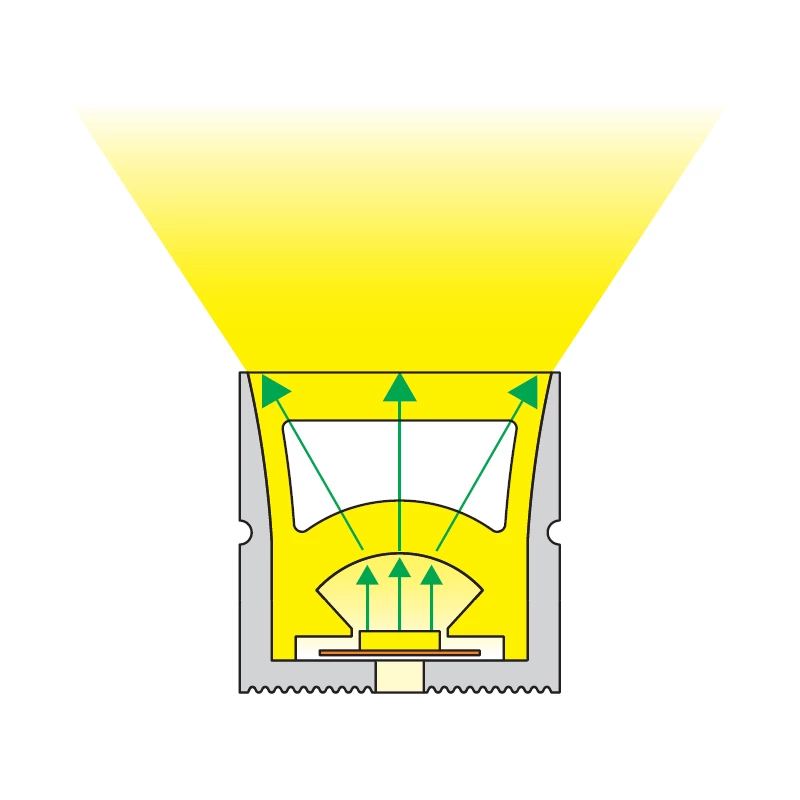

  • Uniform and soft luminance, no light spot.
  • Super brightness large chip, golden wire welded and copper led holder for quicker heat dissipation, higher stability, longer life span.
  • Leadless SMT technique (RoHS certificated), smooth welding joint, firm connection of LED and pcb.

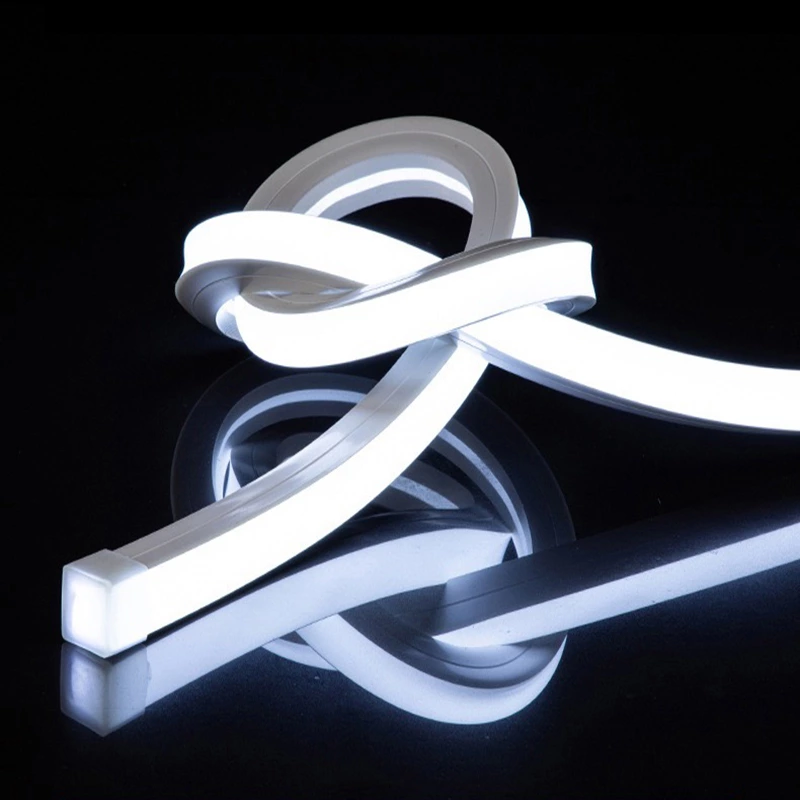

  • Excellent flexibility to shape optionally.

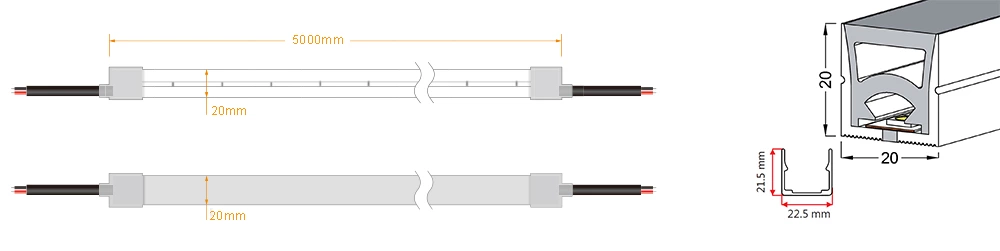

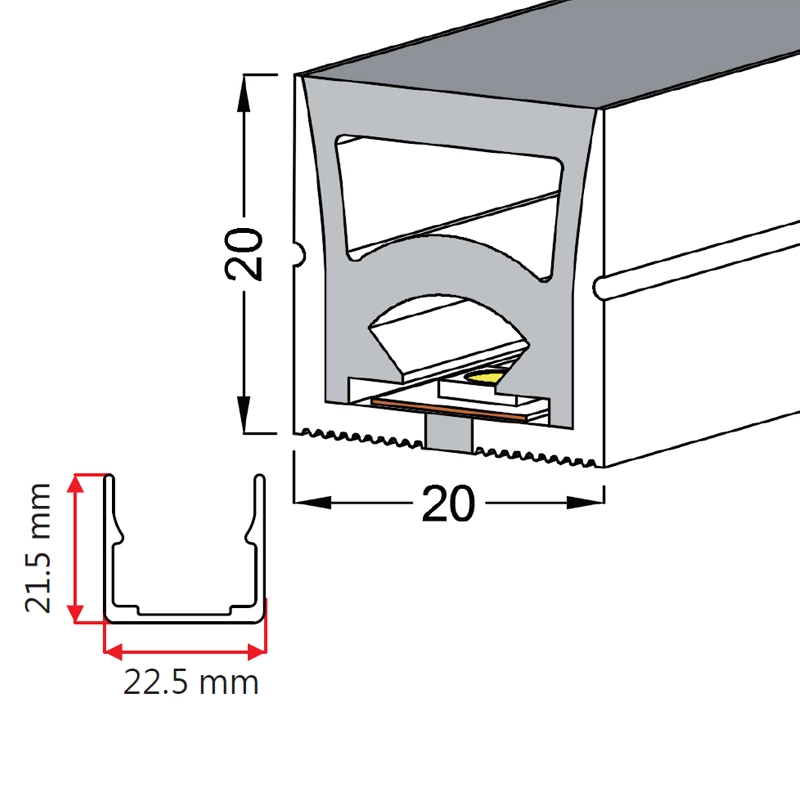

Dimension

120° 20x20mm IP67 Flex Silicone Neon Tube Led Light

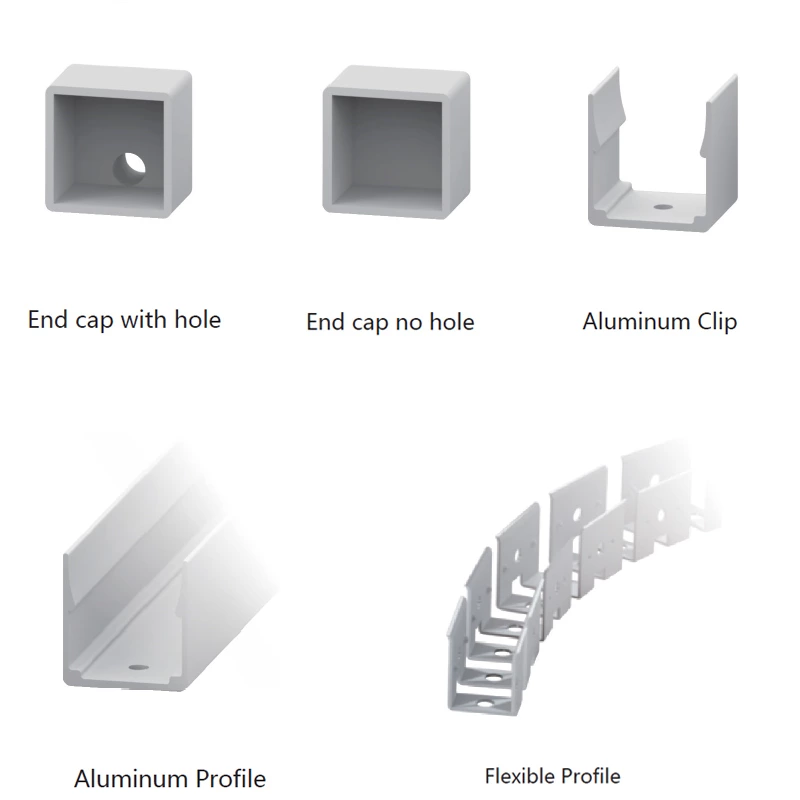

Accessory

120° 20x20mm IP67 Flex Silicone Neon Tube Led Light



How to use the led flex neon light?

The flex led neon light is made by led strip light, silicon extrusion. And it is DC12V OR DC24V. So led neon flex light is the same use way as the led strip light. But because of the silicon extrusion, The led neon light can not bend much. It bends too much, it will damage the strip light inside. So you need to read the led neon flex light user guide before using the neon light.

1. Led Neon Light Installation Accessories


2. How to cut neon led flexible light?

120° 20x20mm IP67 Flex Silicone Neon Tube Led Light

3. How to protect neon led flexible light? The incorrect bending way will damage the neon light.
