160° 3-chip SMD2835 IP65 DC12V 0.72W Mini Led Module, 70x14.8x7.1mm

Item No.
YL-2LSM7015-3X
Input Voltage
DC12V
Wattage
0.72W
CRI
80/90Ra
CCT
2700-6500K/R/G/B
Lumen
115Lm
IP Rate
IP65
Beam Angle
160°
Dimension
70*14.8*7.1mm
Warranty
5 years
160° 3-chip SMD2835 IP65 DC12V 0.72W Mini Led Module, 70x14.8x7.1mm
160° 3-chip SMD2835 IP65 DC12V 0.72W Mini Led Module, 70x14.8x7.1mm 160° 3-chip SMD2835 IP65 DC12V 0.72W Mini Led Module, 70x14.8x7.1mm 160° 3-chip SMD2835 IP65 DC12V 0.72W Mini Led Module, 70x14.8x7.1mm 160° 3-chip SMD2835 IP65 DC12V 0.72W Mini Led Module, 70x14.8x7.1mm 160° 3-chip SMD2835 IP65 DC12V 0.72W Mini Led Module, 70x14.8x7.1mm

Technical Parameters

Item No. YL-2LSM7015-3X
Input Voltage DC12V
Wattage 0.72W
Led Chip 3pcs SMD2835 Led Chips
CRI 80Ra/90Ra
CCT 2700-6500K/R/G/B
Lumen 115lm
IP Rate IP65
Beam Angle 160°

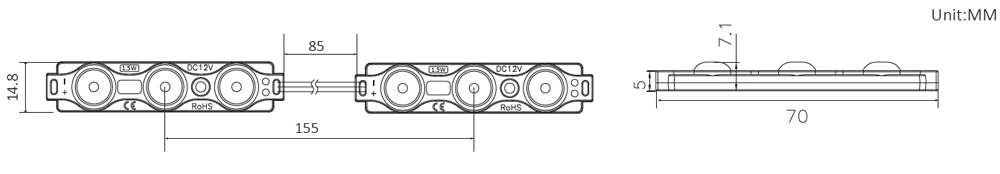

Dimension 70*14.8*7.1mm
Material ABS
Cable Length 150mm
Warranty 5 years

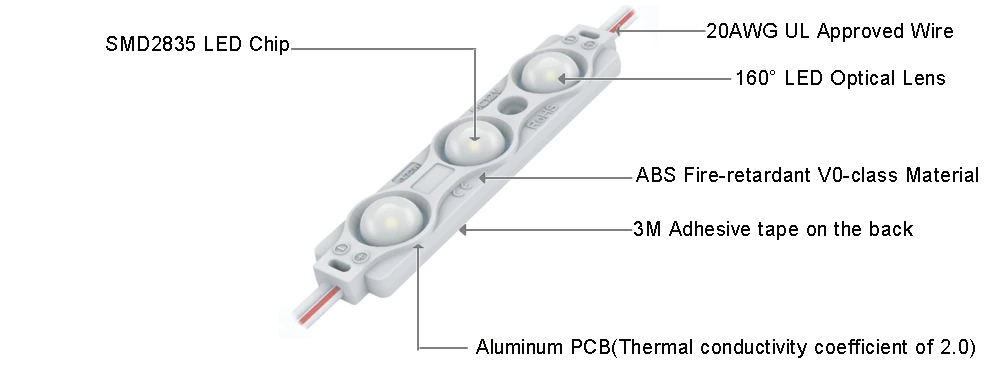

Product Specification







Installation Method



Application

Boxled side module suitable for double-sided light box

Led fairy module suitable for round coner advertising light box

Edge led module suitable for outdoor advertising signs

Edge light led module suitable for light box lighting source

Side emitting led module suitable for exhibition show

Fairy led module suitable for ceilling roof lights

Box led module suitable for institution building

Led lightbox module suitable for commercial lighting

Edge lit lightbox led module suitable for hotels

Posterbox led module suitable for decoration
