165° 3-chip SMD2835 IP67 150lm DC12V 1.08W Mini Led Module, 78x16x10.1mm

Technical Parameters

Item No. YL-2LSM7816-3X
Input Voltage DC12V
Wattage 1.08W
Led Chip 3pcs SMD2835 Led Chips
CRI 80Ra/90Ra
CCT 2700-6500K/R/G/B
Lumen 150lm
IP Rate IP67
Beam Angle 165°
Dimension 78*16*10.1mm
Material ABS
Cable Length 150mm
Warranty 5 years

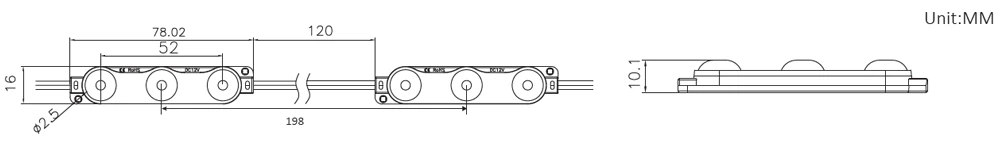

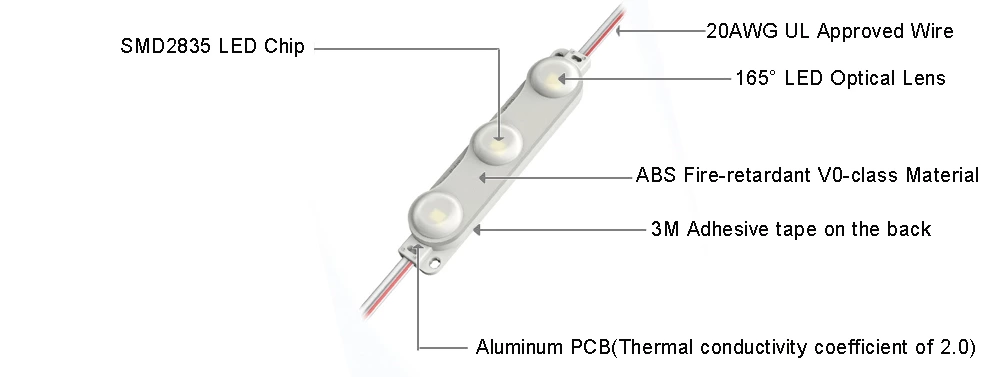

Product Specification



165° 3-chip SMD2835 IP67 150lm DC12V 1.08W Mini Led Module, 78x16x10.1mm



165° 3-chip SMD2835 IP67 150lm DC12V 1.08W Mini Led Module, 78x16x10.1mm



Installation Method



165° 3-chip SMD2835 IP67 150lm DC12V 1.08W Mini Led Module, 78x16x10.1mm

Application

Boxled side module suitable for double-sided light box

Led fairy module suitable for round coner advertising light box

Edge led module suitable for outdoor advertising signs

Edge light led module suitable for light box lighting source

Side emitting led module suitable for exhibition show

Fairy led module suitable for ceilling roof lights

Box led module suitable for institution building

Led lightbox module suitable for commercial lighting

Edge lit lightbox led module suitable for hotels

Posterbox led module suitable for decoration
