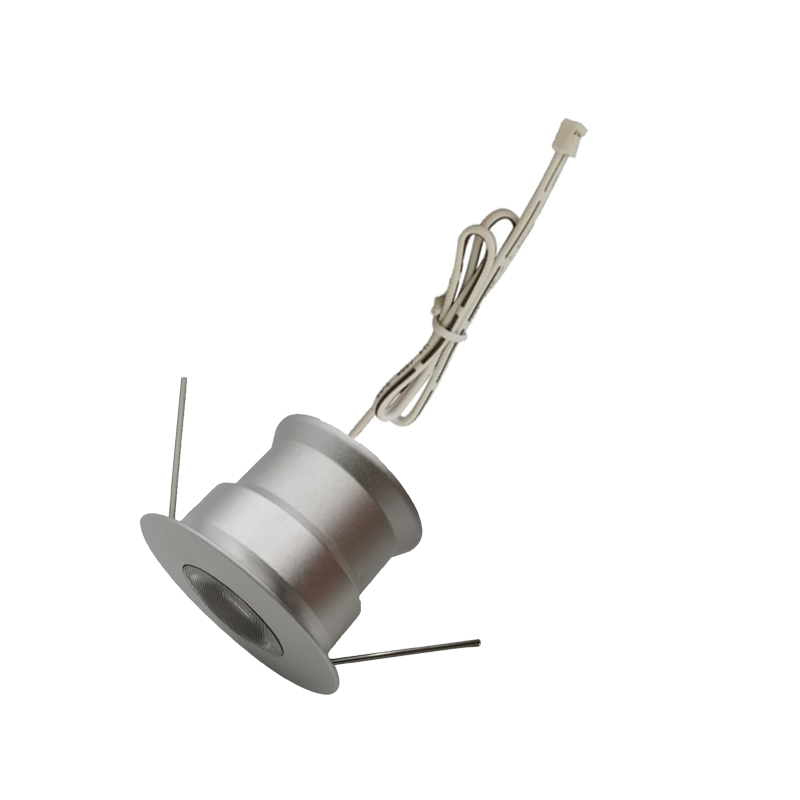

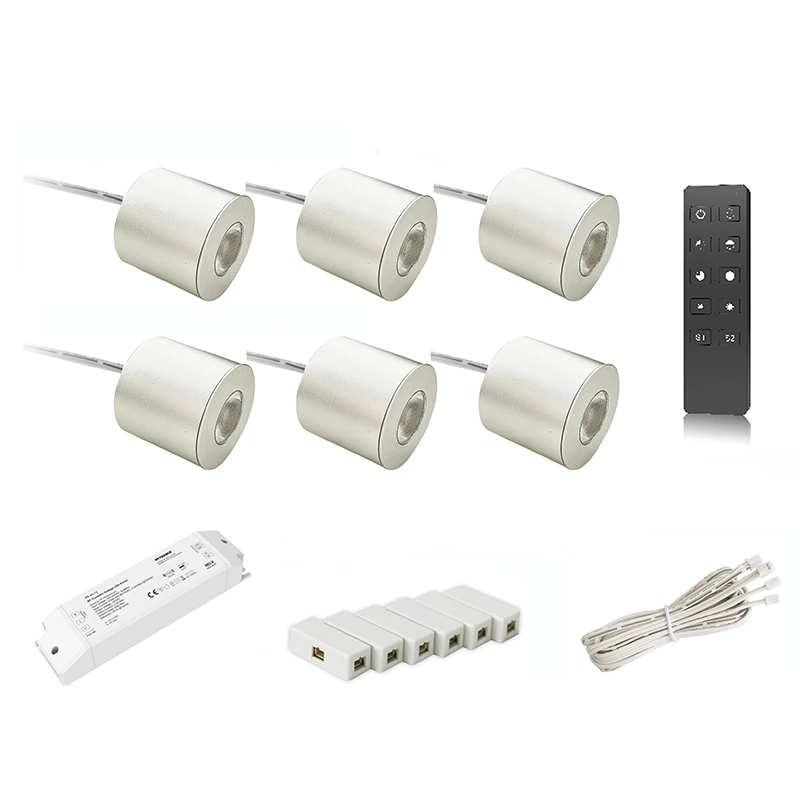

RF 3W Dimmable Mini Led Spotlight Kit

Technical Parameters

Item No. YL-MSL01R-3W-Set
Input Voltage AC100-240V
Output Voltage DC12/24V
Wattage 6x3W
Led Chip 6x1pc CREE 5050 Chip
CRI 80Ra/90Ra
Color WW/NW/CW
Lumen 6x330lm
IP Rate IP20
Beam Angle 20/30/45/60/80/120°

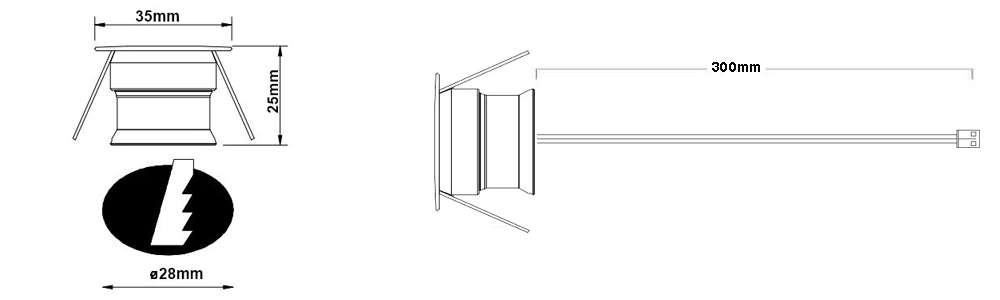

Dimension 35x25mm
Hole Size Ф28mm
Material 6063 Aluminum
Cable Length 300mm
Housing Color Sliver/White/Black
Warranty 3 years

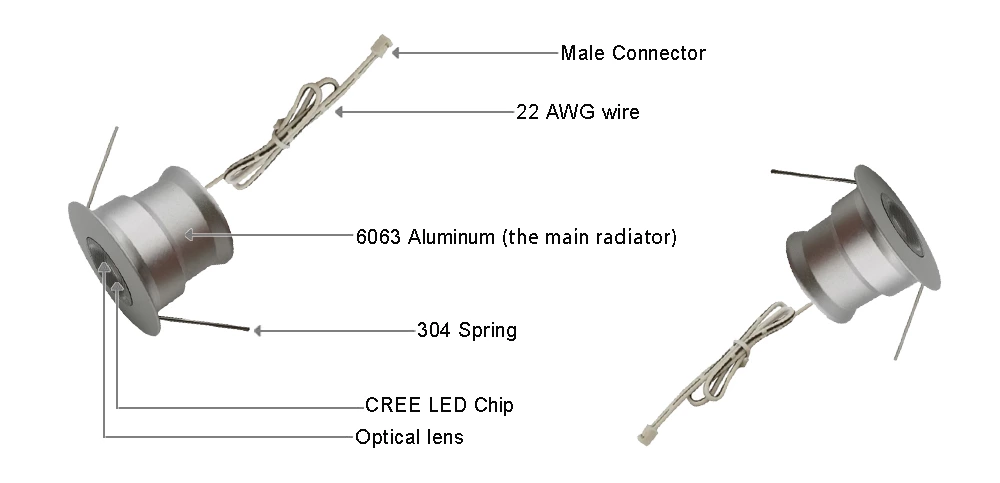

Product Specification

RF 3W Dimmable Mini Led Spotlight Kit

RF 3W Dimmable Mini Led Spotlight Kit





RF 3W Dimmable Mini Led Spotlight Kit

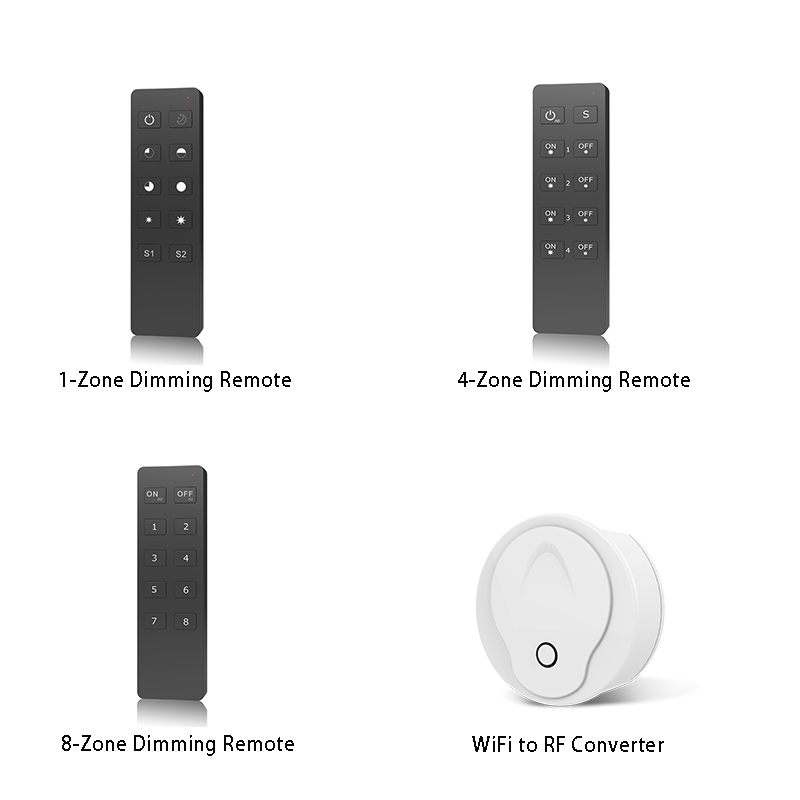

Dimming Way



RF 3W Dimmable Mini Led Spotlight Kit

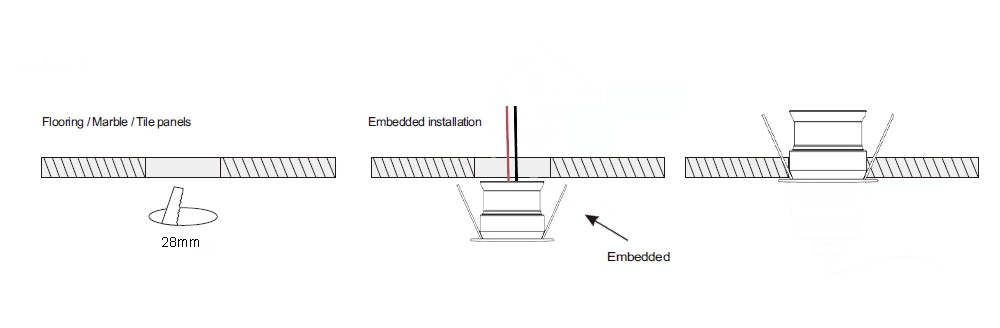

Installation Method

RF 3W Dimmable Mini Led Spotlight Kit



RF 3W Dimmable Mini Led Spotlight Kit



RF 3W Dimmable Mini Led Spotlight Kit

RF 3W Dimmable Mini Led Spotlight Kit

Color Temperature Comparison

RF 3W Dimmable Mini Led Spotlight Kit

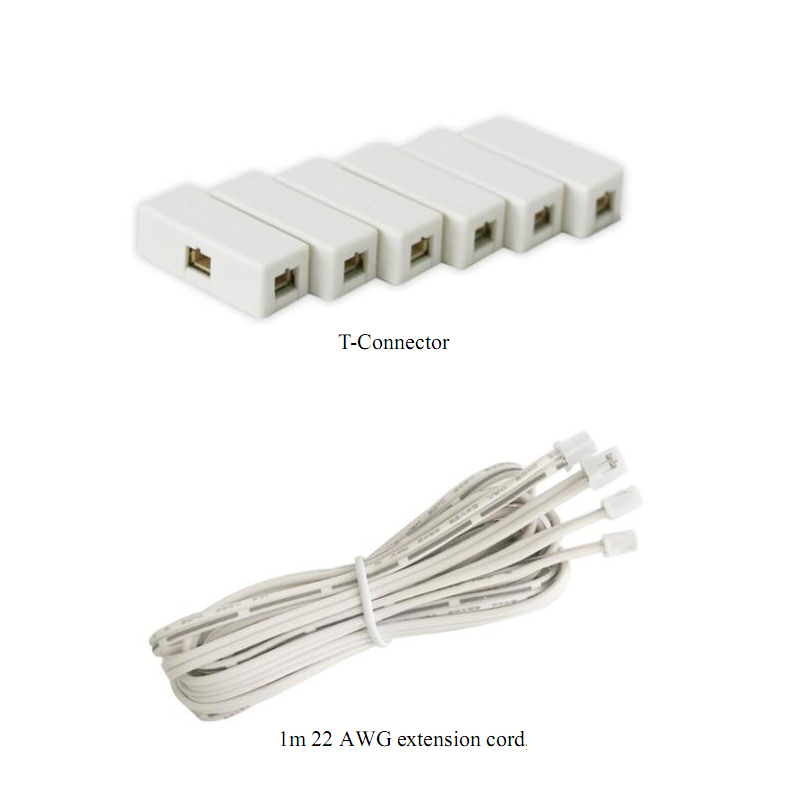

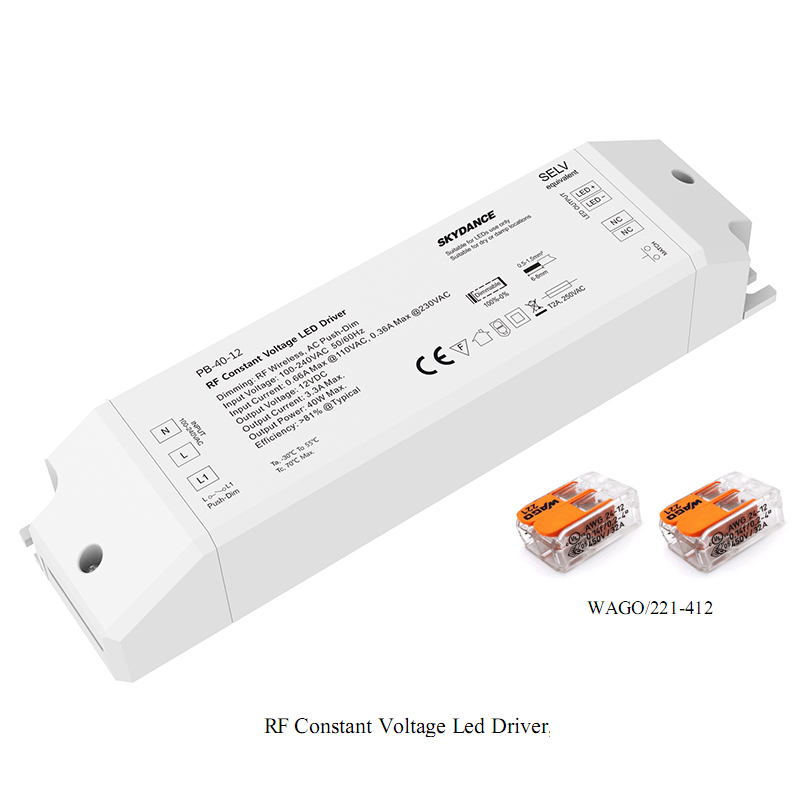

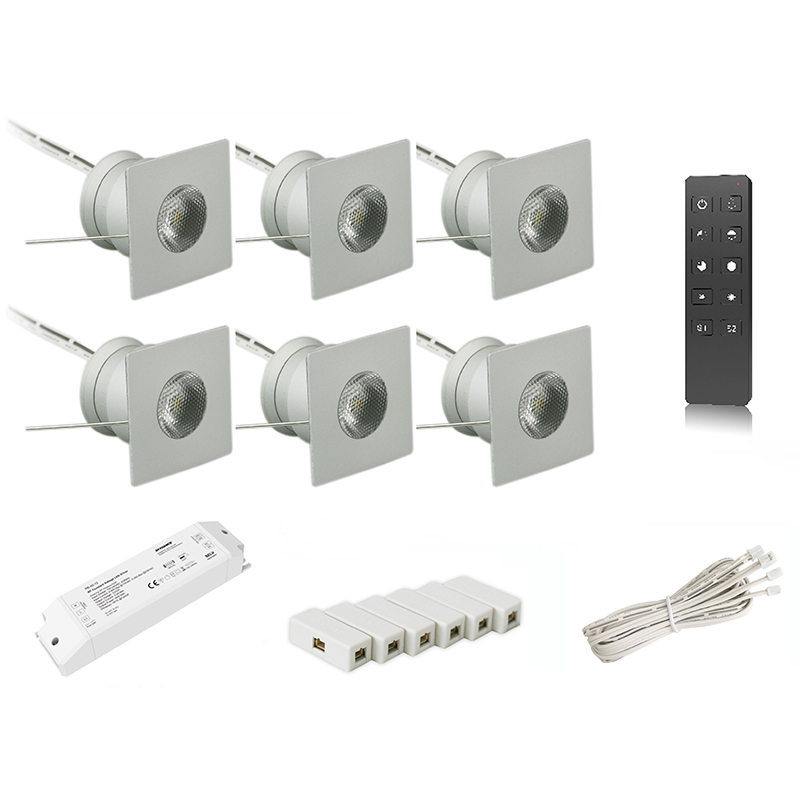

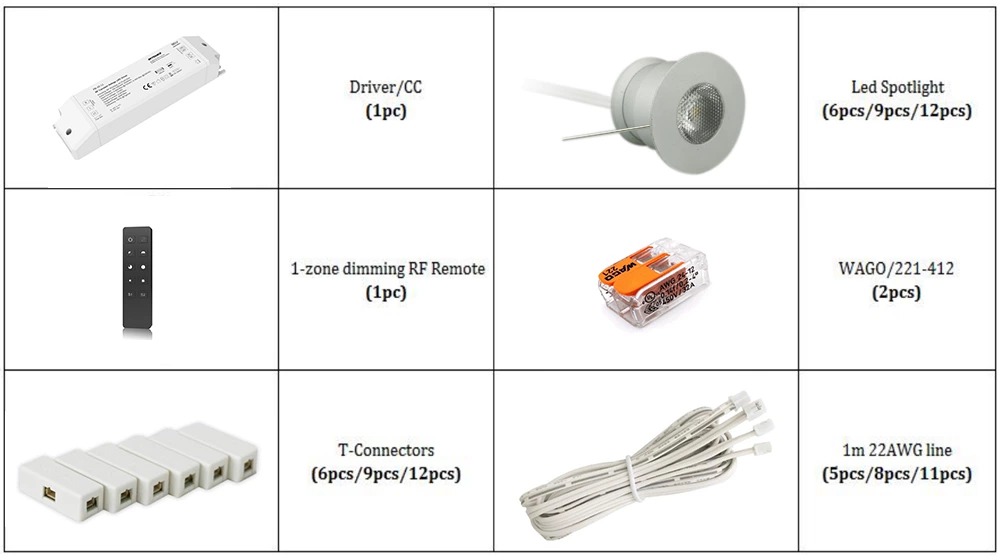

Packing List for Set

RF 3W Dimmable Mini Led Spotlight Kit

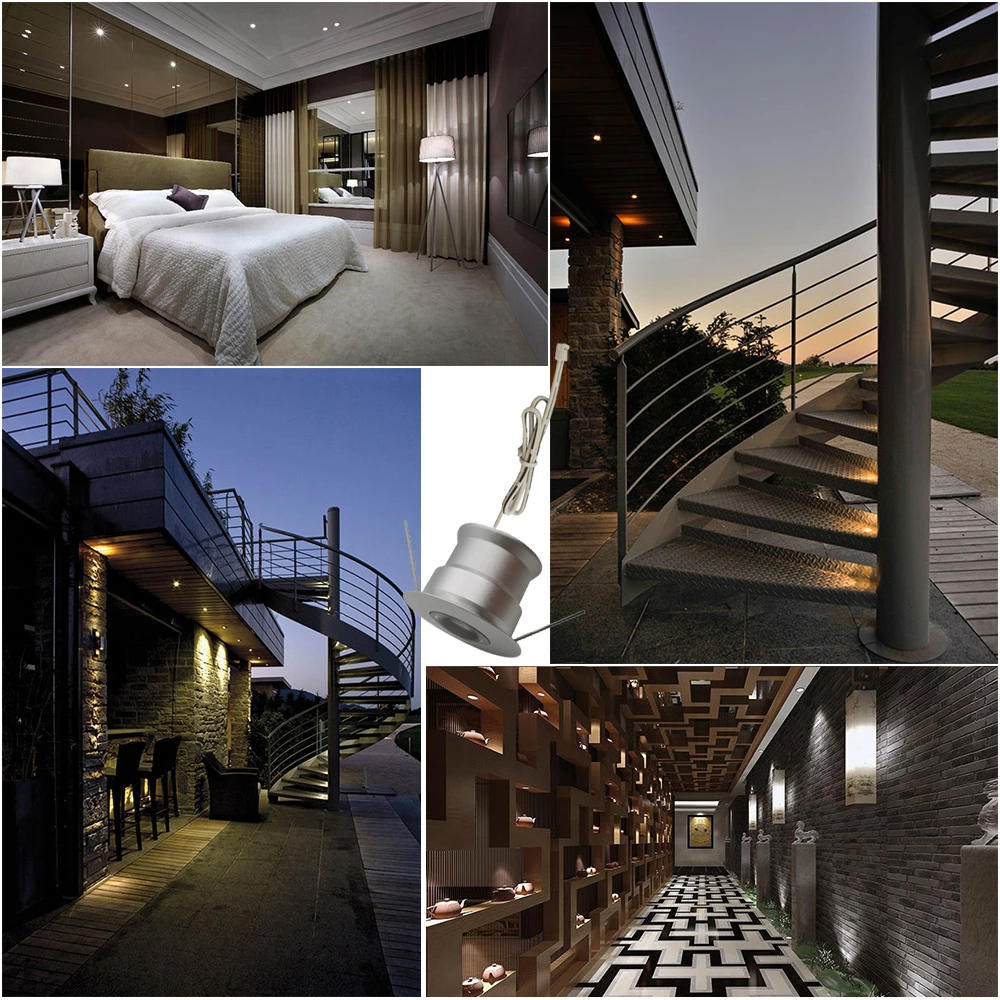

Application

Room Decorative Light, KTV Rooms, Stairs Indicating Light, Cabinet Showcase Light, Stair, Ceiling, Cabinet, Showcase, Kitchen and other DIY decoration Design Lighting etc.

RF 3W Dimmable Mini Led Spotlight Kit
